KLT-DXZ7 Dual Walking Track Welding Robot Workstation - Detailed Description

Tailored to solve welding challenges for medium-to-large structural components (max applicable width: ~4 meters), the KLT-DXZ7 Dual Walking Track Welding Robot Workstation is a transformative automated solution for shipbuilding, construction machinery, and heavy-duty steel structure manufacturing. Traditional single-robot systems, limited by arm span, often require repeated workpiece repositioning or multiple setups—wasting time and risking quality inconsistencies. The KLT-DXZ7 overcomes these barriers with its innovative "dual walking tracks + dual 6-axis robots" design, enabling seamless full-width coverage and one-stop precision welding for large workpieces like wide-body machine frames, heavy-duty boxes, ship hull sections, and large steel brackets.

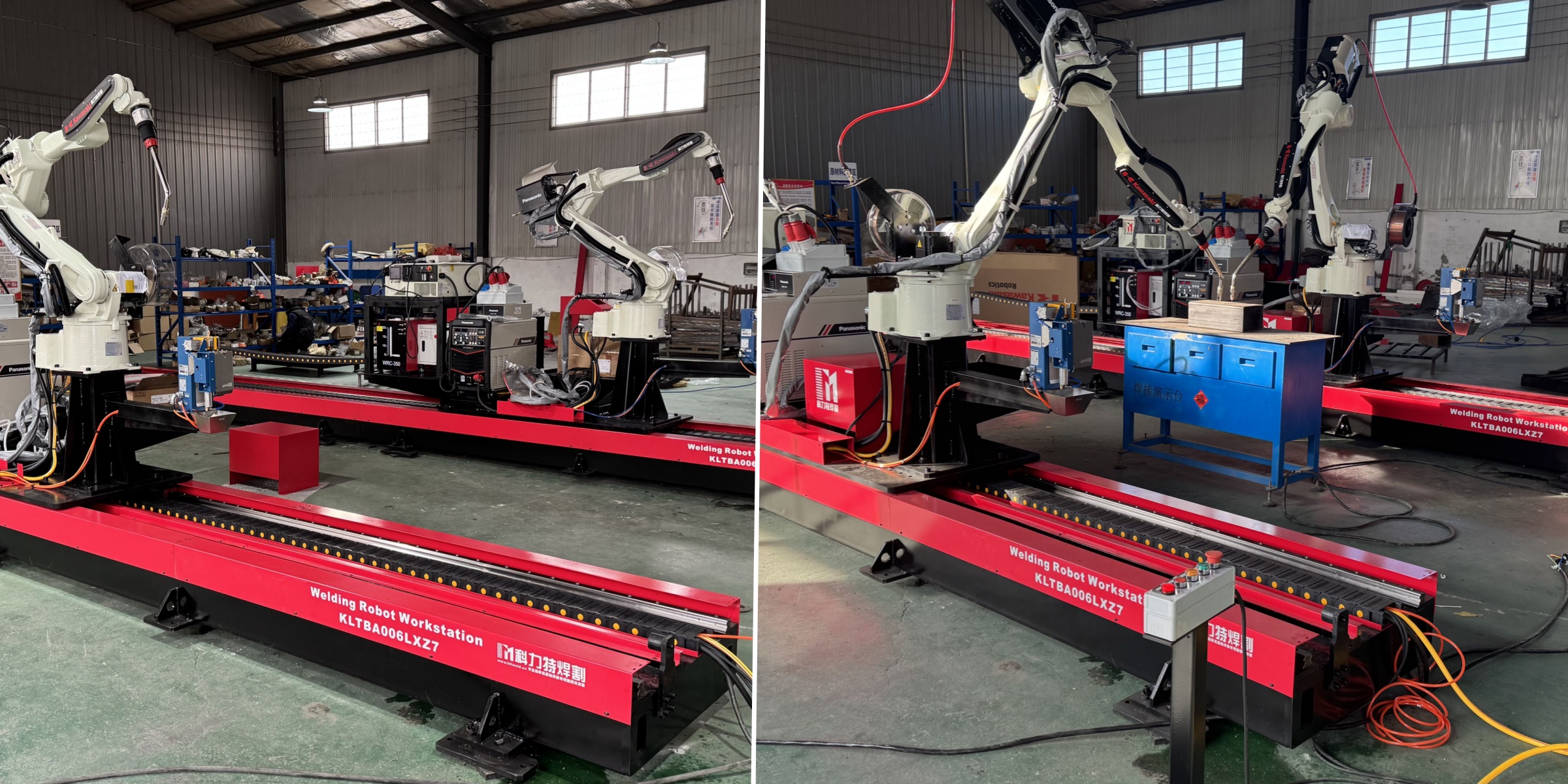

At its core, the workstation features two high-performance 6-axis welding robots (compatible with top brands such as Kawasaki and Panasonic), each mounted on an independent parallel walking track. This setup supports two flexible operating modes to match diverse production needs. In "collaborative mode," the two robots work simultaneously on different areas of a single large workpiece—e.g., welding parallel seams on a ship section or symmetric joints on a wide frame—eliminating sequential processing and cutting total welding time by up to 50%. In "split mode," the workstation splits into two independent stations, each handling smaller components or different batches, effectively doubling theoretical production capacity—ideal for factories with mixed-volume, multi-variety demands.

Safety and usability are prioritized in the KLT-DXZ7’s design. It complies with international standards: ANSI/RIA R15.06 (industrial robots) and EN ISO 13849-1 (safety control systems). Features include enclosed safety fences with interlocking doors, multi-location emergency stops, and light curtains—preventing operator access to the welding area during operation and mitigating risks from high temperatures, arcs, and moving parts. The user-friendly touchscreen HMI lets operators select pre-programmed parameters, switch modes, and monitor real-time data (robot position, welding current, torch temperature) without advanced expertise. For teams new to automated welding, KLT provides comprehensive on-site training.
