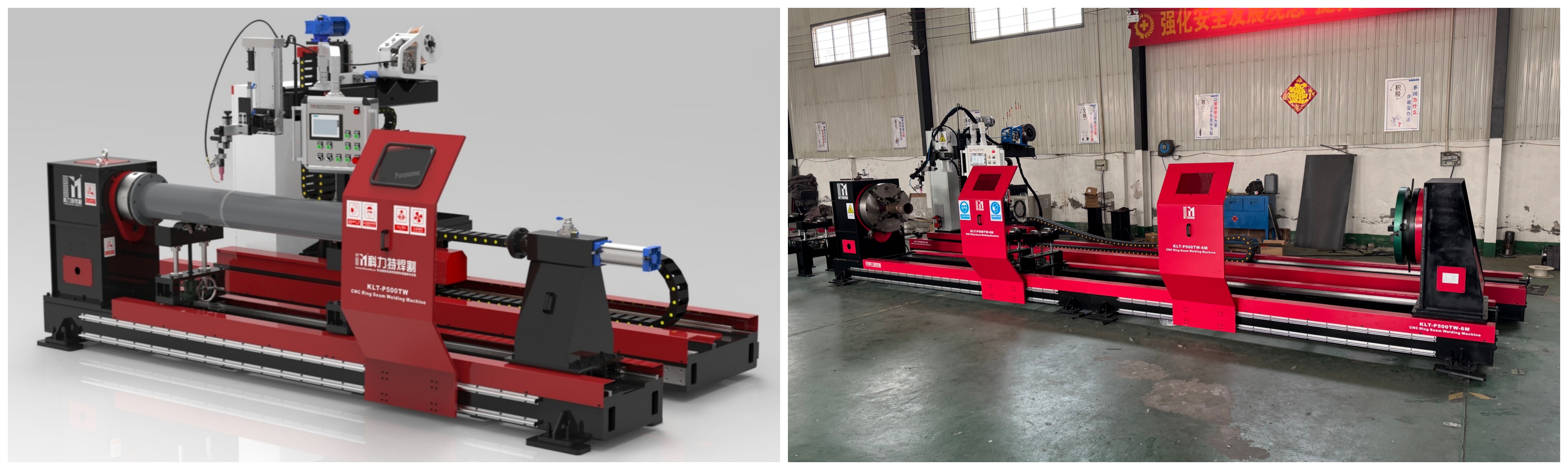

KLTHF-P500TW-6M-List

1

Servo ring seam welding positioner

Maximum Load:1000kg,

Chuck speed：0-5r/min

HEADSTOCK   Chuck diameter:Φ630mm(4 jaws)，

Maximum   through-hole diameter:260mm

Support   manual chuck with a diameter of 600mm(4 jaws) and a maximum through-hole   diameter of 365mm

1 set

External axis servo motor

Motor   Lichuan, speed:2000r/min,

1 set

Robot extension cable

Robot   extension cable (10m); And extension of external axis servo motor cable

1 set

2

Precision   welding manipulator base

Effective stroke: 6000mm

Electric walking,Frequency Control

1 set

3

Precision   welding manipulator

Column height:1500mm;

Beam length: 1600mm;

AC motor control/Frequency

Control

1 set

4

welding   head

1. Including manual 3-Axis welding gun adjustment   mechanism;

2. the welding torch pneumatic risk and fall;

3. Electric lifting/lowering of welding gun

4. Electric welding gun left/right, including   welding gun left/right oscillation function;

5. AC servo motor

1 set

5

Support bracket

For supporting long products

High strength steel plate

2set

6

Control System

Siemens   Touch screen+ Siemens PLC controller, Frequency control, Schneider Electric   components

1 set

7

Protective door

KELITEWELD   Manufacturing

1 set

8

Electrical   cable

Power cord, welding power ground cord, external conversion box,   trachea, etc.

1 set

9

Welding   Power Supply

Panasonic YC-400TX4 (IGBT) DC Pluse

AC 3*380V ,50/60 HZ

Load rate60%

1set

10

TIG welding torch

WP-27/GuHan

TIG   water cooled welding torch and wire filling mechanism

1 set

11

TIG wire feeder

ZHENKANG

WH-001

Support   pulse feeder

1 set

12

Cooling water tank

Model: Panasonic   YX-09KGC2

10L

1 set

13

Tungsten Needle Clip

WP-27

(2.4mm/3.2mm/4.0mm/5.0mm)

Choose   one of the 4 models

50

pieces

14

Welding gun pours fluid

WP-27

(2.4mm/3.2mm/4.0mm/5.0mm)

Choose   one of the 4 models

10 pieces

15

Torch protection porcelain nozzle

WP-27

(5#)

80

pieces

16

Tungsten pin clamp

10 pieces

17

Tungsten needle

(2.4mm/3.2mm/4.0mm/5.0mm)

Choose one of the 4 models

1 row= 10 pieces

5 Rows

18

Conductive   tip

Φ=1.0mm or Φ=1.2mm or Φ=1.6mm

60 pieces
