KLTHG-ZF2500TA (List)
| Description | Model | Quantity |
1 | Longitudinal seam welder | AC 220V 50/60 HZ The maximum effective welding length 2550mm Clamping diameter range: Φ180mm-Φ700mm Clamping thickness:1mm-5mm DC stepper motor, linear module slide, rack and pinion drive Pneumatic drop device (travel 100mm) Welding gun with swing device The supporting shaft includes water cooling and gas protection Controller:Delta PLC + Delta touch screen | 1set |

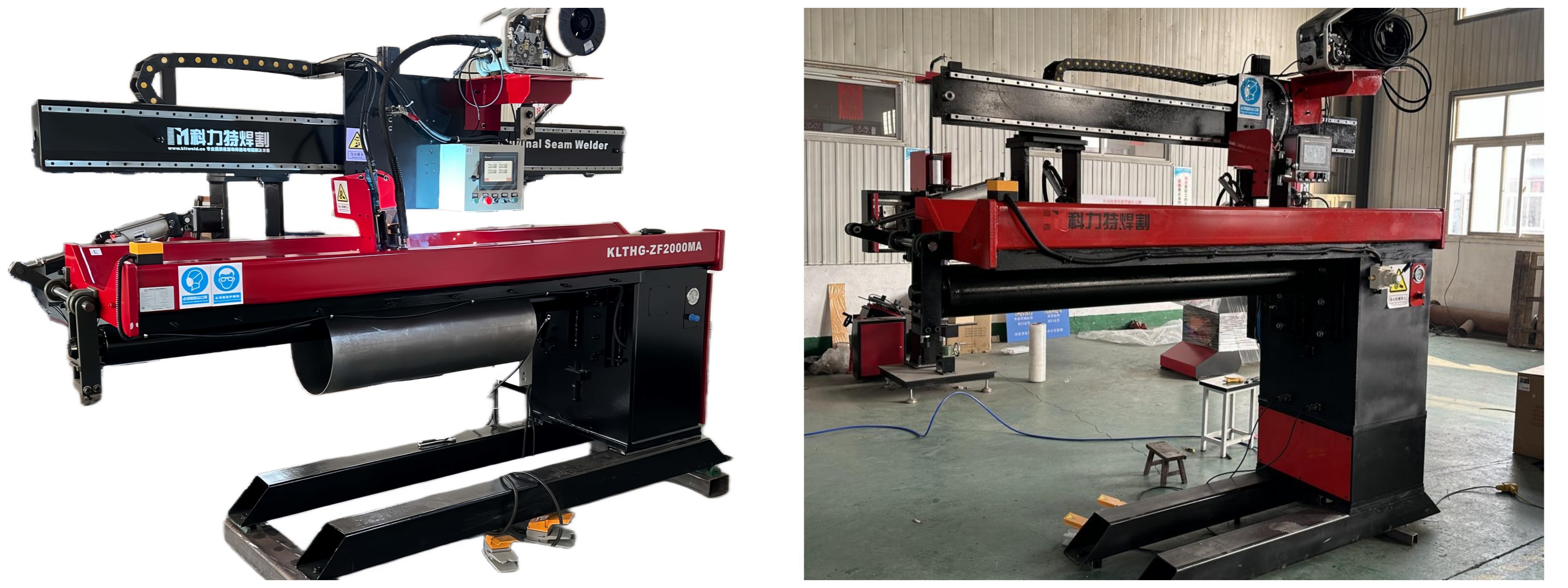

For Brazil’s manufacturing sectors—from water tank production and fire extinguisher assembly to pressure vessel fabrication—consistent weld quality, high productivity, and adaptability to local material needs are non-negotiable. The KLT KLTHG-ZF Series Longitudinal Seam Welding Machine is engineered to meet these demands, redefining automatic straight seam welding for cylindrical, box, and plate workpieces across the country.
What makes this series stand out for Brazilian businesses? First, its versatile compatibility: it handles carbon steel and stainless steel—two materials widely used in Brazil’s industrial and infrastructure projects—and supports CO₂, Pulse MAG, and Pulse MIG processes. Whether you’re making small fire extinguisher tanks or large water heater liners, the machine’s effective welding length (500-2500mm, customizable) and adjustable speed (50-1500mm/min) fit diverse production scales.
Precision is built into every component. The high-quality steel welded bed (treated for stress relief to avoid deformation) and piano-key clamp system (with water-cooled copper alloy pressure fingers) prevent thin-plate burn-through—critical for stainless steel tank manufacturing. Its ±0.1mm repeat positioning accuracy eliminates manual welding inconsistencies, ensuring each longitudinal seam meets Brazil’s strict industrial standards for pressure resistance and sealing.
Ease of use and reliability further boost its value. The industrial PLC control system with a bilingual (Chinese/English) touchscreen lets operators with basic training master setup in days, addressing Brazil’s skilled labor gaps. It integrates seamlessly with mainstream welding power supplies (e.g., Panasonic), and KLT provides export-grade ISPM15 packaging to protect the machine during long-distance shipping to Brazil—plus 24/7 technical support and a flexible warranty.
From São Paulo’s manufacturing hubs to Rio de Janeiro’s industrial zones, the KLTHG-ZF Series cuts rework costs by 40% and boosts throughput by over 50% compared to manual welding. Whether you’re a small workshop or a large enterprise, models like the KLTHG-ZF1500MA and ZF2000MA adapt to your space and output needs.
Contact us today for a customized quote or virtual demo—let KLT’s longitudinal seam welding solutions drive efficiency in your Brazilian production lines.
