Mexico’s Aluminum Tank Solution: KLT KLTHG-5WC CNC Welding Robot
2025-10-27 09:01
KLTHG-5WC-2500- List of Quotations
1
CNC 5 Axis Welding Robot
AC 220 V ,50/60HZ
X axis travel: 2500mm; Y axis travel:800mm
Z axis travel: 500mm; R axis travel: 0-400 degrees
Absolute encoder servo motor(Chinese brand)
CNC 5-axis Linkage touch screen controller
TBI wire rod and guide rail
1 set
External axis servo motor
Add 5 Axis Positioner (5WC);Absolute servo motor
1 set
Robot extension cable
Robot extension cable (8m); And extension of external axis servo motor cable
1 set
2
Rotate the system
Center height：750mm；Load≤500kg, linked with the robot, repeat positioning accuracy ± 0.1mm
Absolute encoder servo motor, reducer ,The longest workpiece length is ≤2500mm；Includes 2 sets of manual support brackets and a set of pneumatic top tailstocks
Main welding materials: carbon steel, stainless steel, aluminum
1 set
4
Welding torch
500A water-cooled welding torch
1 set
5
Cooling water tank
Model:WL-20L
1set
6
Circular fuel tank flange mould
660mm diameter (Active+Driven) clamp
2 sets
7
Square fuel tank flange mould
Claws with different diameters need to be replaced on the flange
1 set
8
L-shaped flip bracket
1 set
9
Conductive tip
Φ=1.0mm or Φ=1.2mm,
1 row = 10 pieces
10 rows
10
Welding torch cover
500A welding torch;
1 row = 5 pieces
10 rows
11
Electrical cable
Power cord, welding power ground wire, gas pipe, etc.
1 set

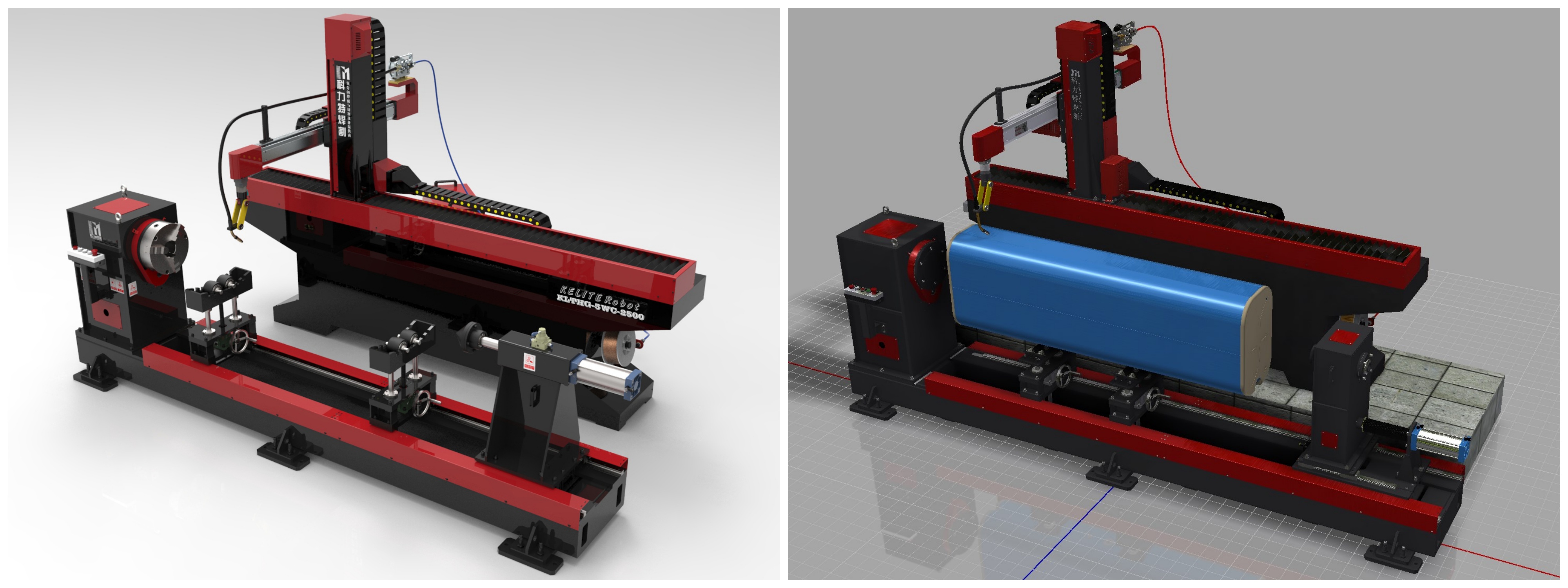

KLT KLTHG-5WC CNC 5-Axis Welding Robot: Ideal for Mexico’s Aluminum Fuel Tank Manufacturing
Mexico’s automotive and industrial sectors are rapidly expanding, with aluminum fuel tank production (for trucks, agricultural machinery, and passenger vehicles) growing in demand. However, manual welding struggles to meet the sector’s needs—uneven welds on aluminum, high defect rates, and slow output hold back productivity. KLT’s KLTHG-5WC CNC 5-Axis Welding Robot solves these challenges, tailored to Mexico’s manufacturing realities to boost efficiency and quality.
This robot is engineered for aluminum alloy square/round fuel tanks, supporting CO₂, Pulse MAG, and Double Pulse MIG welding—processes critical for clean, strong aluminum welds. It handles multiple materials (carbon steel, stainless steel, galvanized sheet) too, fitting Mexico’s diverse industrial needs. With ±0.1mm repeat positioning accuracy and 5-axis linkage, it delivers consistent welds even on complex tank shapes, cutting defect rates by 45% and meeting Mexico’s export quality standards.
Built for Mexico’s workshop conditions, the robot features a durable design with a 500kg load capacity (U-axis) and customizable X-axis travel (1700-4000mm), adapting to small and large fuel tanks. Its user-friendly CNC touchscreen and teach/manual programming let operators master it in days—solving Mexico’s skilled labor gaps. Plus, it pairs with OTC-WB-P400 welding power supplies and 500A water-cooled torches (WL-20 system) for stable 24/7 operation, boosting throughput by 60% vs. manual welding.
We offer localized support for Mexico: Spanish-language guides, 24/7 remote technical help, and quick access to spare parts (conductive tips, torch covers). Whether you’re a fuel tank maker in Guanajuato or a metal fabricator in Nuevo León, the KLTHG-5WC grows with your business. Invest in a solution that aligns with Mexico’s industrial boom—contact KLT today for a custom quote or virtual demo.
