1

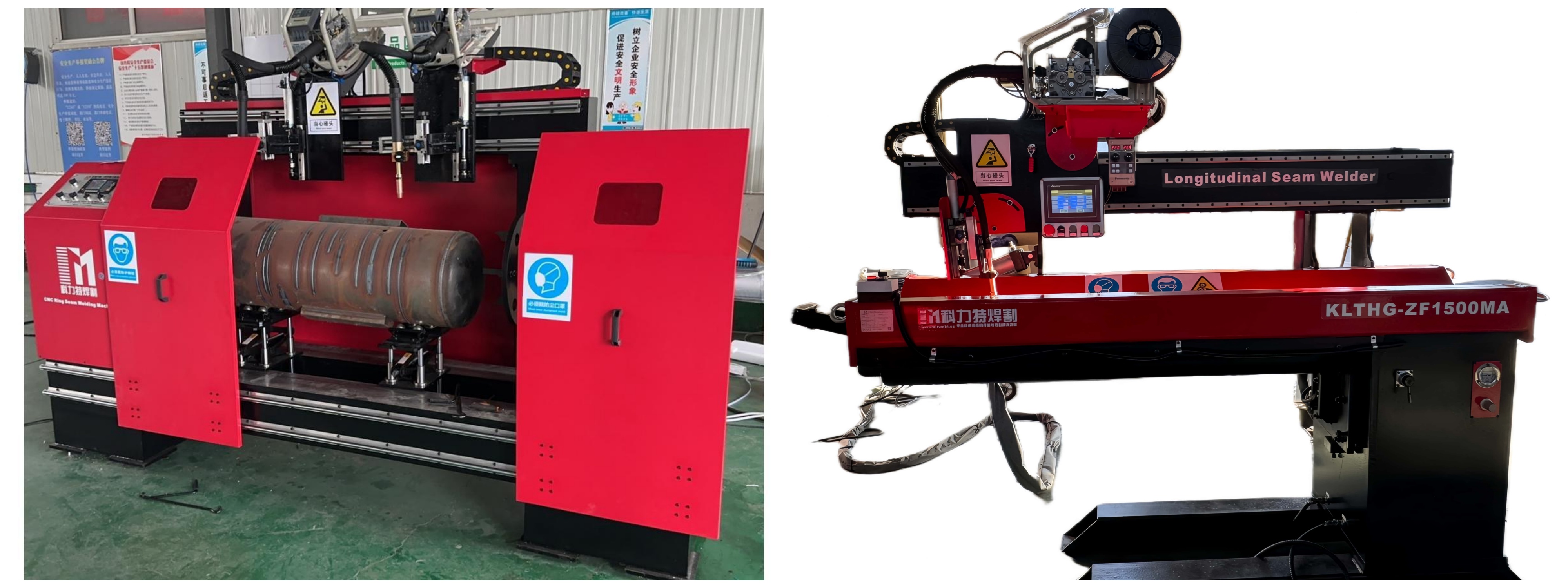

CNC ring seam welding machine

AC 220V   50   HZ

The maximum effective welding length：1500mm

Clamping diameter range:≤Φ450mm Load: 500kg

Headstock center height:450mm

Headstock: DC Step motor; RV reducer,

Support bracket, 2 sets；Machine color: red and   black

Welding torch pneumatic drop stroke: 100mm

Pneumatic tailstock:Effective stroke 150mm

Including a set of Water tank flange mold                (220mm diameter   (Active+Driven)clamp)

Controller: CNC 2-axis controller

1set

2

Welding Power Supply

YD500FR2 (CO2/MAG/   MIG)（Panasonic）

AC 3*380V ,50 HZ，Load   rate100%

Main welding materials: carbon steel, stainless steel;

Cable   5m

2 set

3

Welding torch

500A, water-cooled welding torch

2   set

4

Water tank flange mould

400mm diameter (Active+Driven)clamp

1 set

5

Cooling   water tank

Model:WL-20L

2 set

6

Conductive tip

Φ=1.0mm/Φ=1.2mm,

1 row =   10 pieces

10 row

7

Welding torch cover

500A welding torch ;

1 row = 5 pieces

10 row

1

Longitudinal seam welder

AC 220V   50/60 HZ

The maximum effective welding length 1550mm

Clamping diameter range: Φ200mm-Φ700mm

Clamping   thickness:1mm-6mm

DC stepper motor, linear module slide, rack and pinion   drive

Pneumatic drop device (travel 100mm)

Welding gun with swing device

Controller:Delta PLC + Delta touch   screen

1set

2

Welding torch

500A water-cooled Straight shank welding   torch

1 set

3

Welding Power Supply

YD500FR2 (CO2/MAG/   MIG)（Panasonic）

AC 3*380V ,50 HZ，Load   rate100%

Main welding materials: carbon steel, stainless steel;

Cable   5m

1 set

4

water cooling system

water cooling system，20L

1set

5

Conductive tip

Φ=1.0mm/Φ=1.2mm,

1 row =   10 pieces

10 row

6

Welding torch cover

500A welding torch ;

1 row = 5 pieces

10 row
