KLTHFH-3000BM2 YD350FR2 Sent To South Korea
KLTHFH-3000BM2 YD350FR2
Description | Model | Quantity | |

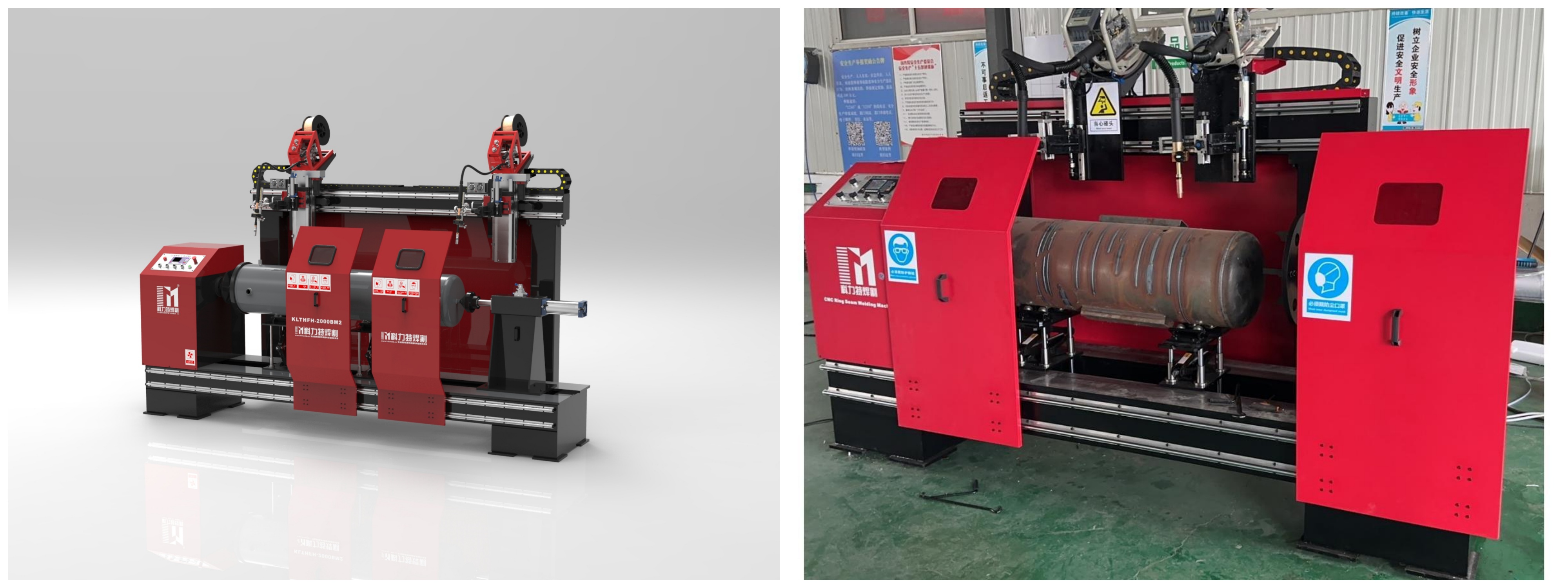

1 | CNC ring seam welding machine | KLTHFH-3000BM2 AC 220V 50 HZ The maximum effective welding length：3100mm Clamping diameter range: MinΦ200mm; MaxΦ800mm Headstock center height:630mm Headstock: AC servo motor; precision RV reducer; Support bracket, 2 sets The beam slide is manually moved with locking device; Z-axis Taiwan imported module has an effective stroke of 450mm, AC servo motor drive; pneumatic tailstock effective stroke 200mm; welding gun up/down stroke 100mm; welding gun has three-dimensional manual adjustment function; Welding torch swinging device Controller: CNC 3 axis controller | 1set |
2 | Welding Power Supply | YD350FR2 (CO2/MAG/ MIG)（Panasonic） AC 3*380V ,50 HZ，Load rate 60% Main welding materials: carbon steel, stainless steel; Cable 5m | 2 sets |
3 | Welding torch | 500A water-cooled Straight shank welding torch | 2 sets |
4 | water cooling system | water cooling system，20L | 2 sets |
5 | Conductive tip | Φ=1.0mm or Φ=1.2mm, 1 row = 10 pieces | 10 row |
6 | Welding torch cover | 500A welding torch; 1 row = 5 pieces | 10 row |
This high-performance multi-axis welding robot represents the pinnacle of industrial automation, engineered specifically for demanding international markets like South Korea. It seamlessly integrates advanced robotics, precision engineering, and intelligent software to deliver unparalleled efficiency, consistency, and quality in welding applications.
Built for superior performance, this robot features multiple programmable axes, allowing for exceptional flexibility and a wide range of motion. It can effortlessly handle complex welds on intricate components, accessing tight spaces and maintaining optimal torch angles that are challenging or impossible for manual welders. This makes it ideal for industries such as automotive manufacturing, shipbuilding, and precision machinery.
Key advantages of this system include:
Extreme Precision: Guarantees perfect, repeatable welds every time, drastically reducing errors and material waste.
Significant Efficiency Gains: Operates continuously at high speeds, dramatically boosting production output and reducing cycle times.
Enhanced Quality Control: Integrated sensors and real-time monitoring ensure consistent weld penetration and integrity, meeting the highest quality standards.
Reduced Operational Costs: Minimizes reliance on highly skilled manual labor and lowers costs associated with rework and consumables.
Improved Worker Safety: Automates hazardous welding tasks, protecting personnel from fumes, intense heat, and arc flash.
This robot is equipped with a user-friendly interface, allowing for easy programming and quick changeovers between different tasks. Its robust construction ensures reliability and a long service life in harsh industrial environments. For South Korean manufacturers looking to gain a competitive edge through automation, this multi-axis welding robot is the definitive solution for enhancing productivity, ensuring top-tier quality, and driving future growth.
