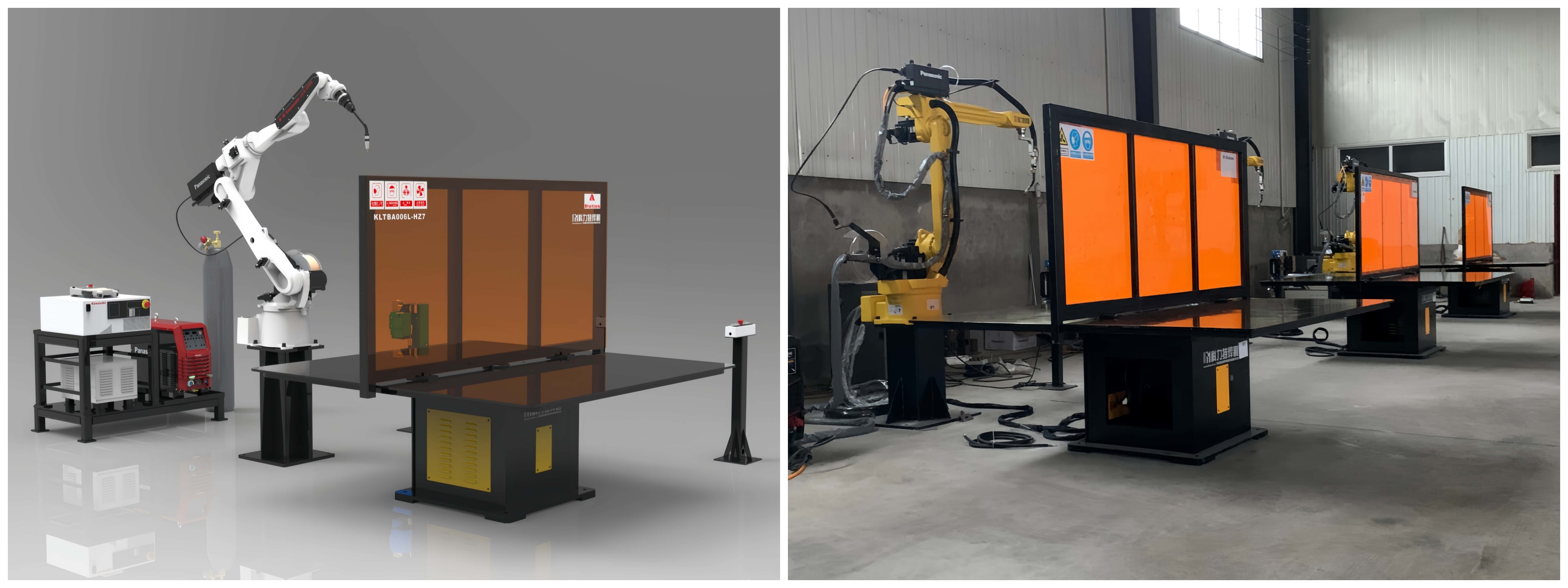

Three welding workstations KLTW1900HZ7 sent to Argentina
KLTW1900HZ7 (List)
Description | Model | Quantity | |
1 | 6 Axis Welding Robot | Model：KLTW1900 | 1set |
3*AC380 V ,50/60HZ | |||
R=1898mm，Load=6kg | |||
Control cabinet:TRC3C-B06 | |||
R axis travel: 0-400 degrees | |||
Anti-collision welding torch:APG35Y | |||
Touch Sense System | |||
Cable Line:Standard configuration | |||
Add the One Set servo drive and motor(7 Axis ) to synchronize with the robot；servo motor(Chinese brand) | |||
2 | MIG/MAG/CO2 Welding Power | Model: Panasonic YD-350GL5 Load rate: 60% ;MIG/MAG/CO2 Contain: Wire feeder , Control cable | 1set |
3 | Servo positioner system | Load≤500kg, Linked with the robot, Platform size 1900 *1900mm, Precision RV reducer,External start button box,does not include fixtures | 1 set |
4 | Gun gun cutting system | Clean up the torch, fuel injection, cut the wire （3 in 1） Chinese brand | 1set |
5 | Conductive tip | Φ=1.0mm orΦ=1.2mm 1 row = 10 pieces | 10 row |
6 | Welding torch cover | 350A Air-cooled welding torch ; 1 row = 5 pieces | 10 row |
Unleash Unprecedented Flexibility: The 7-Axis Welding Robot Arrives in Argentina
The future of Argentine manufacturing is here, and it moves with unparalleled freedom and precision. We are proud to introduce our groundbreaking 7-Axis Welding Robot, engineered to tackle the most complex welding challenges and set a new standard for productivity and quality in your workshop. This advanced robotic solution is designed not just to meet the demands of modern industry but to redefine what's possible in automated welding.
Beyond Limits: The Power of 7-Axis Movement
While 6-axis robots offer significant flexibility, our 7-axis robot represents a quantum leap. The additional axis provides an extraordinary range of motion, much like a human elbow, allowing the robot to maneuver around obstructions and access confined or deeply recessed weld joints with ease. This eliminates the need for complex and expensive positioners and fixturing. For intricate fabrications, custom machinery, or assemblies with complex geometries common in sectors like automotive, aerospace, and industrial equipment, this robot delivers flawless, consistent welds from the perfect angle, every time.
Maximize Uptime and Slash Production Costs
In today's competitive market, efficiency is profitability. Our 7-axis welding robot operates with relentless speed and superhuman endurance, drastically reducing cycle times and maximizing your production output. It works continuously without fatigue, ensuring your projects are completed on schedule. The dramatic reduction in setup time and the virtual elimination of rework due to its pinpoint accuracy translate directly into lower operational costs and higher profit margins. By automating your most demanding welding tasks, you can reallocate your skilled human workforce to more value-added areas like design, supervision, and final assembly.
Engineered for the Demands of Argentine Industry
Built with robust components and backed by sophisticated, user-friendly software, this robot is designed for seamless integration into your existing workflow. Its intuitive programming interface minimizes the learning curve, allowing your team to master complex welding paths quickly. We understand the importance of reliable support, which is why our commitment to our Argentine partners includes comprehensive technical assistance and readily available service to ensure your investment delivers maximum returns.
Key Advantages for Your Business:
Ultimate Dexterity: Access tight spaces and weld complex joints impossible for standard robots.
Superior Weld Quality: Unmatched consistency and precision for a flawless finish.
Reduced Fixturing Costs: Simplified workholding due to the robot's extreme flexibility.
Increased Throughput: Significantly faster cycle times and 24/7 operation capability.
Enhanced ROI: Lower labor costs, minimized waste, and reduced rework.
Don't let geometric constraints limit your production potential. Embrace the next generation of welding automation. Contact us today to discover how the 7-axis welding robot can become the cornerstone of your competitive advantage in Argentina.
