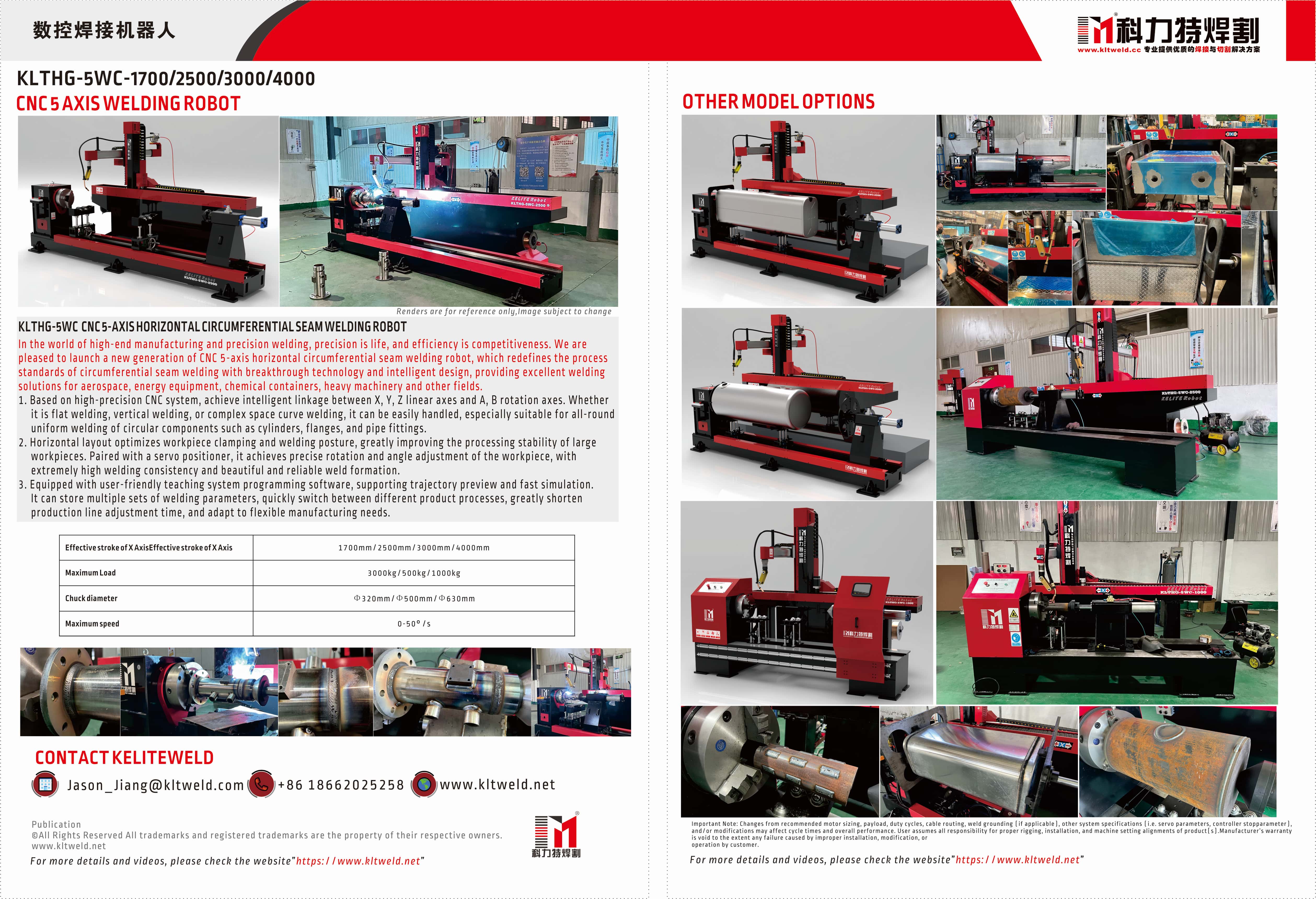

CNC 5 Axis welding robot for MAG/MIG surfacing welding KLTHG-5WC-1000

Description

Model

Quantity

1

CNC 5 Axis Welding

Robot

AC 220 V ,50/60HZ

X axis travel: 1200mm; Y axis travel:800mm

Z axis travel: 500mm;

C axis travel: 0-400 degrees

Absolute encoder servo motor (Chinese brand)

CNC 6-axis Linkage touch screen controller

1 set

Center height 450mm；Maximum diameter: 500mm；Load≤300kg,linked with the robot,

repeat positioning accuracy ± 0.1mm

Absolute encoder servo motor, The longest workpiece length is ≤1000mm；Φ320mm   manual chuck

2

Welding Power Supply

YD500FT3   (CO2/Pulse MAG/ Pulse MIG)

（Panasonic）

AC 3*380V ,50/60 HZ，Load rate100%

Main welding materials: carbon steel, stainless steel

1set

3

Welding torch

500A, water-cooled welding torch

1set

4

Cooling   water tank

Model:   WL-20L

1 set

5

Conductive tip

Φ=1.0mm or Φ=1.2mm,1 row = 10 pieces

10 row

6

Welding torch cover

500A Water -cooled welding torch ;1 row = 5 pieces

10 row

Main Technical Parameters

Model

KLTHG-5WC-1000

X-Axis Transmission

Precision helical gear rack- Effective stroke 1200mm

Y-Axis Transmission

Precision ball screw - Effective stroke 800mm

Z-Axis Transmission

Precision helical gear rack - Effective stroke 450mm

Effective stroke of C axis

0-400degree

Maximum operating speed

700mm/S or 42m/min

Repeatability positioning accuracy

±0.1mm

Maximum length of U Axis

1000mm

Maximum diameter of U Axis

Φ500mm - Manual chuck 320mm

Maximum Load of U Axis

300kg

Programming form

Teach mode and manual mode

X、Y、Z、C、U Axis motor

Absolute AC servo motor

Drive parts

Taiwan TBI

Control system

CNC 5 Axis Linkage

Input/output

24 Inputs, 12 Outputs

Program storage

Memory 1GB

Main input power

AC 220V 50HZ/60HZ

Welding method

CO2/MAG/MIG/TIG/SAW/Plasma/PTA/Laser   Welding

Gas protection

100%CO2 or   80%Ar+20%CO2 or100%Ar
