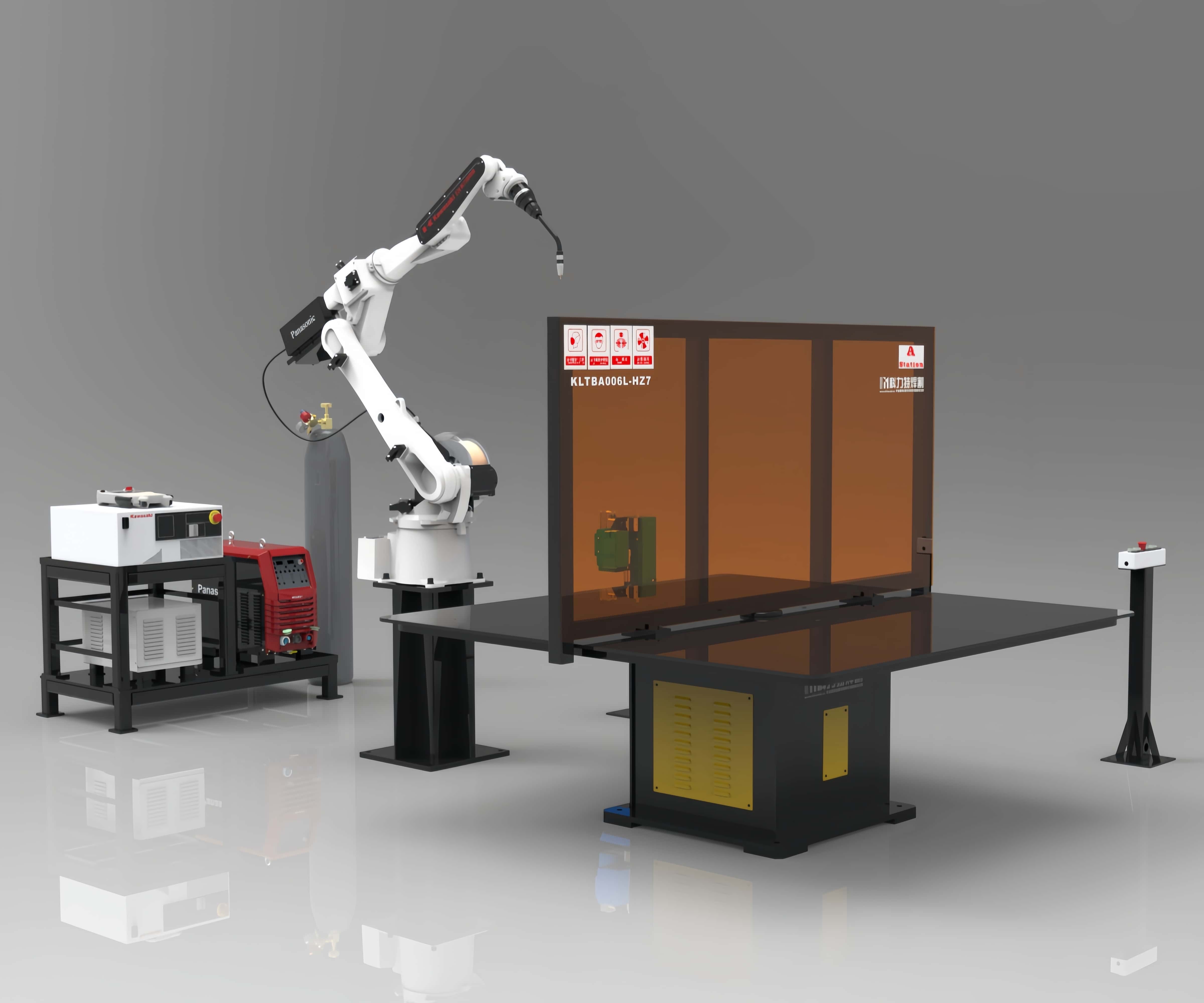

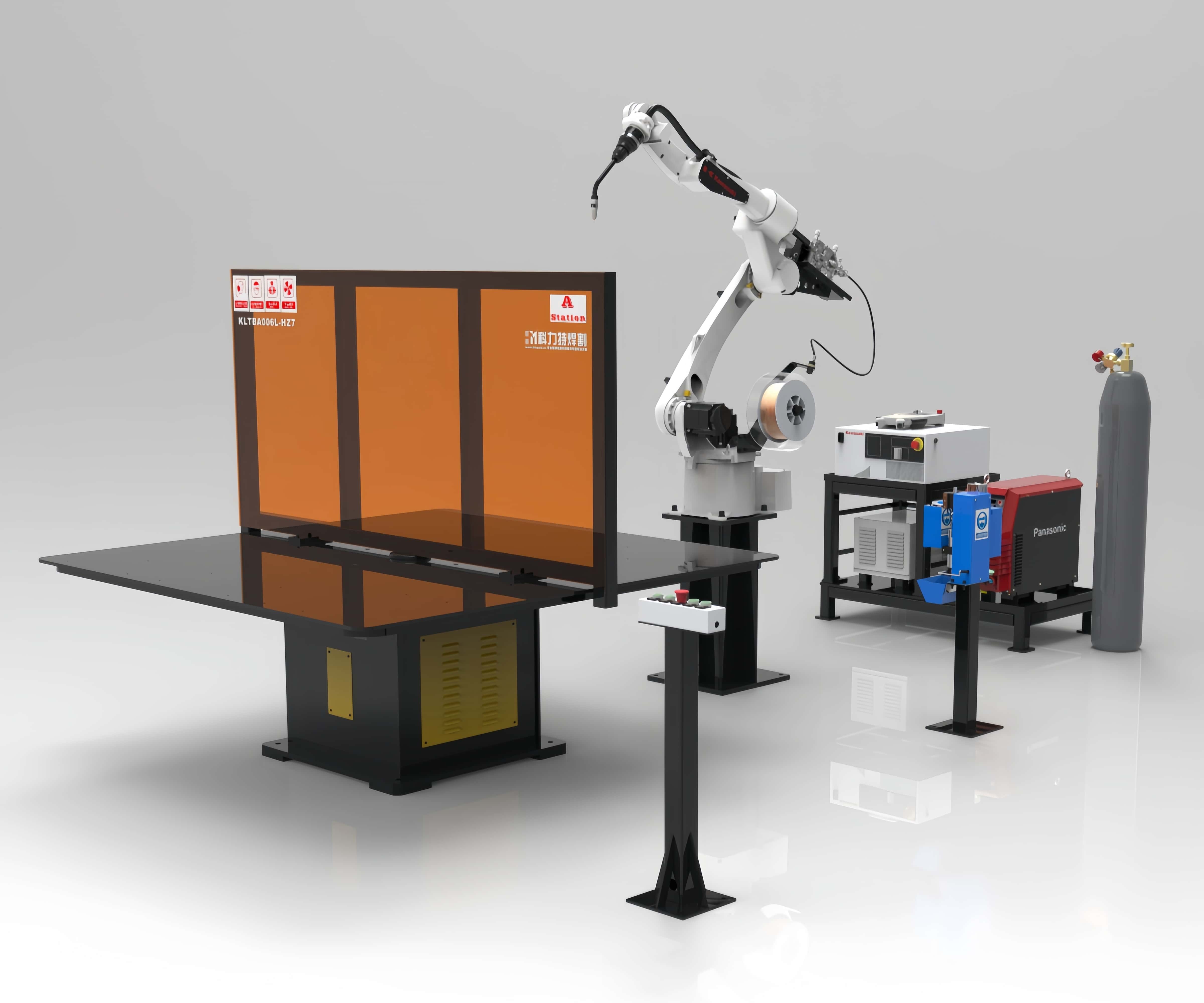

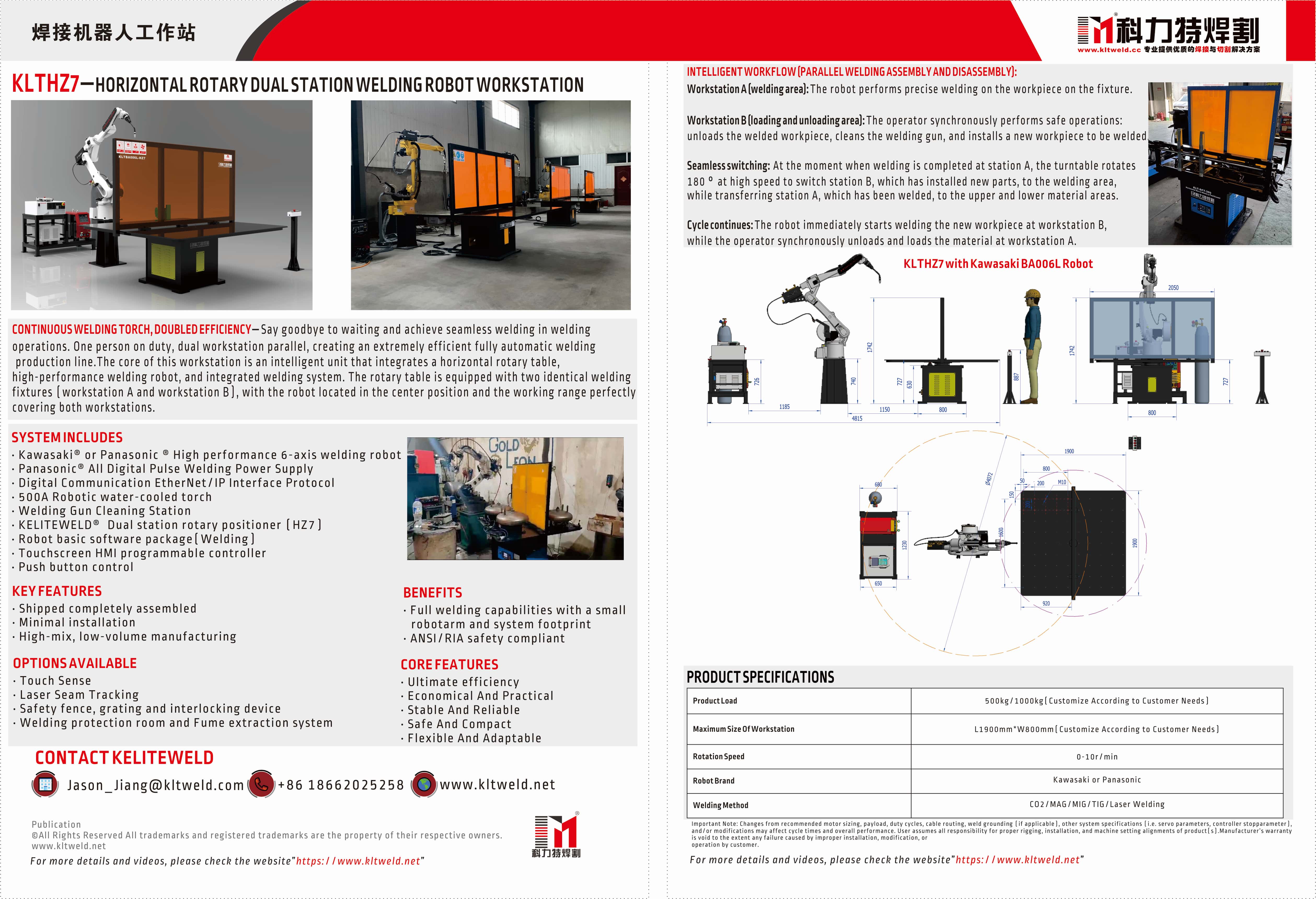

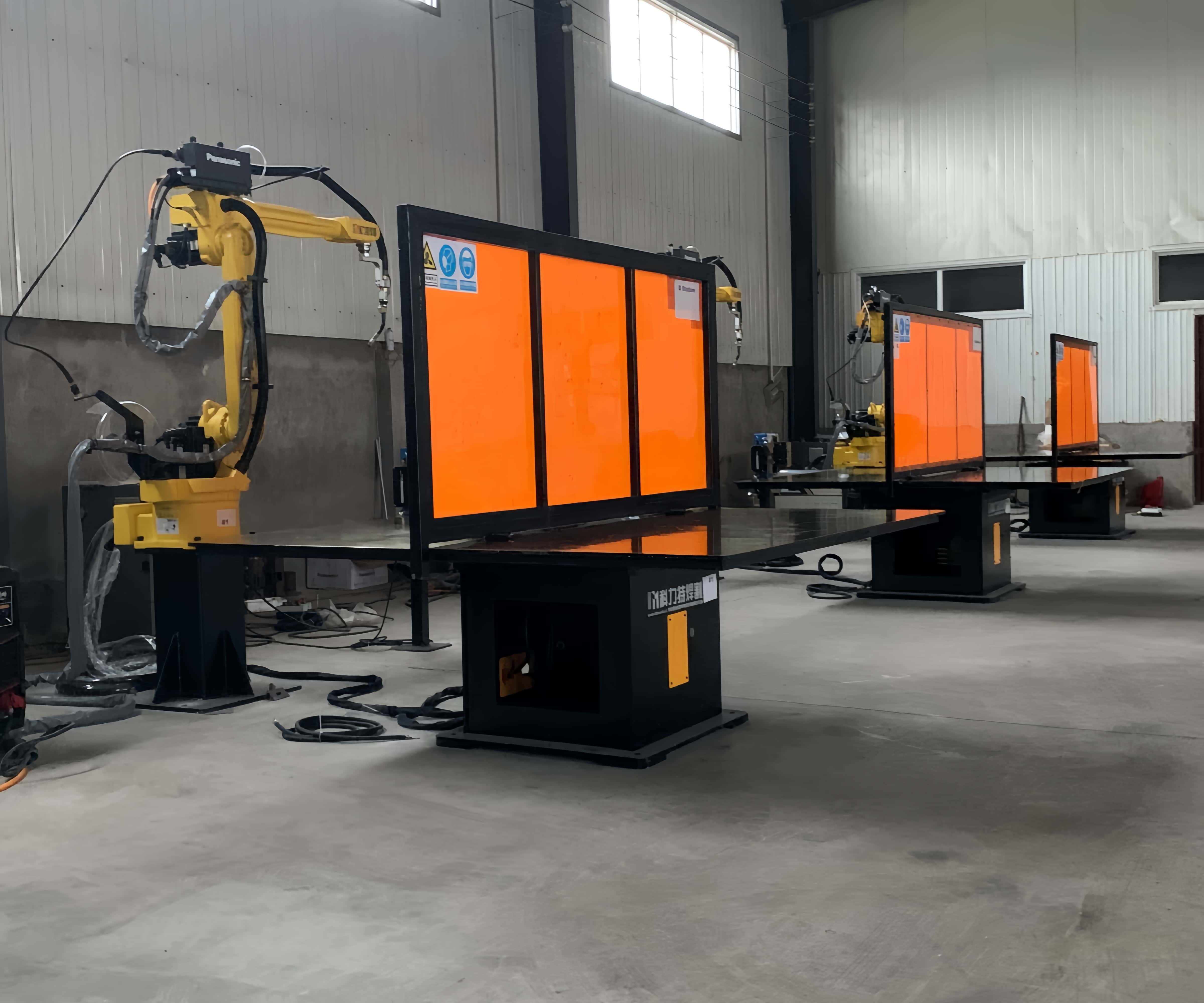

Kawasaki Dual Station Welding Robot Workstation KLTBA006L-HZ7

Description

Model

Quantity

1

6 Axis Welding Robot

Kawasaki Model：BA006L

R=2036mm，Load=6kg

1set

Teach pendant

Color LCD with touch-panel,

Emergency Stop SW, Teach Lock SW and Enable SW,

Cable Line: Standard configuration(10m)

Controller

Model: E01,

Input Power:AC200-AC220V±10%、50/60Hz、3 phases

Controlled axes:Std. 7 axes (Max 9   axes);

Memory capacity:8MB;

I/O signals:GPIO board (Input   32/Output 32);

Dimensions:W550×D580×H278mm,40Kg

Transformer

AC 3*380V is converted to AC 3*220V

2

External axis servo motor

Add 7 Axis 2 KW ；Kawasaki original

1 set

3

Robot extension cable

Robot extension cable (8m);And extension of external axis servo motor cable

1 set

4

Welding Power Supply

Model:   Panasonic YD-500GL5

Load   rate: 60% ;Pulse MIG/ Pulse MAG/CO2

Contain: Wire   feeder , Control cable

1set

Wire Feeder

Panasonic   6-axis robot dedicated wire feeder;Panasonic extension cable (5m)

Communication   interface device

EtherNET/IP   communication protocol

5

welding torch

KLT-602W；

special welding gun for Carbon steel, stainless steel welding;Water-cooled welding torch

1set

6

Cooling   water tank

Model: WL-20L

1set

7

Welding gun   clearing station

Clean   up the torch, fuel injection, cut the wire

（3 in 1） Chinese brand

1set

8

Wire feeding   accessories

Wire   feeding tray bracket and wire feeding tube

1set

9

Robot   fixed base

Made   by KELITEWELD

1set

10

Control   cabinet bracket

Made   by KELITEWELD

1set

11

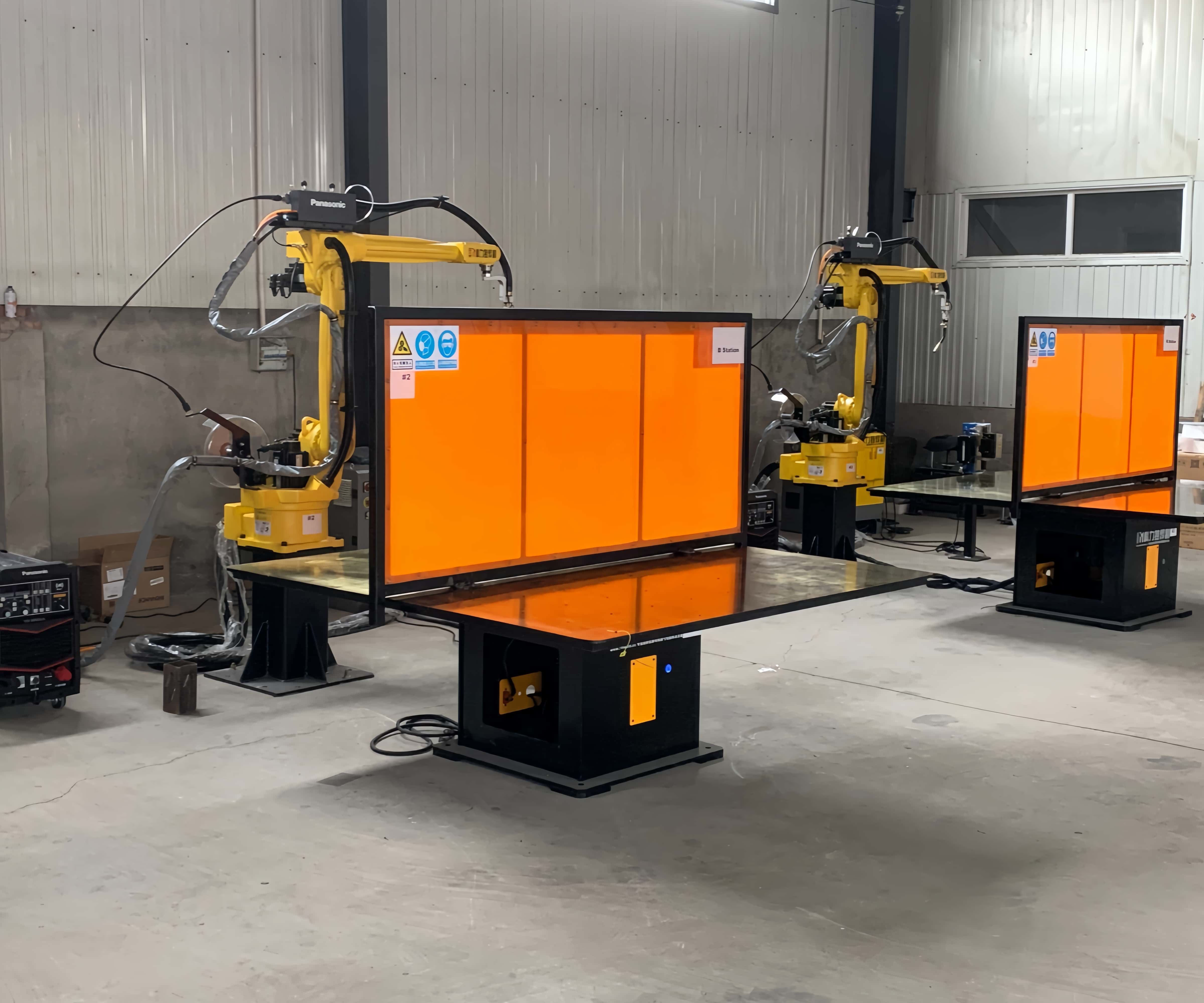

Double station   rotary servo positioner

Load≤500kg, Linked with the   robot,

Platform   size 1900 *1900mm, Precision RV reducer, External start button box, does not   include fixtures

1 set

12

Electrical   cable

Power cord, welding power ground cord, external conversion box,   trachea, etc.

1 set

13

External   button box

Start, pause, emergency stop, etc.

1 set

14

Conductive tip

Φ=1.0mm/Φ=1.2mm,

100 Pieces

15

Welding torch cover

500A welding torch ;

20Pieces

16

Contact tip connecting rod

500A welding torch ;

20 Pieces

17

Insulation   sleeve

500A welding torch ;

10 Pieces
