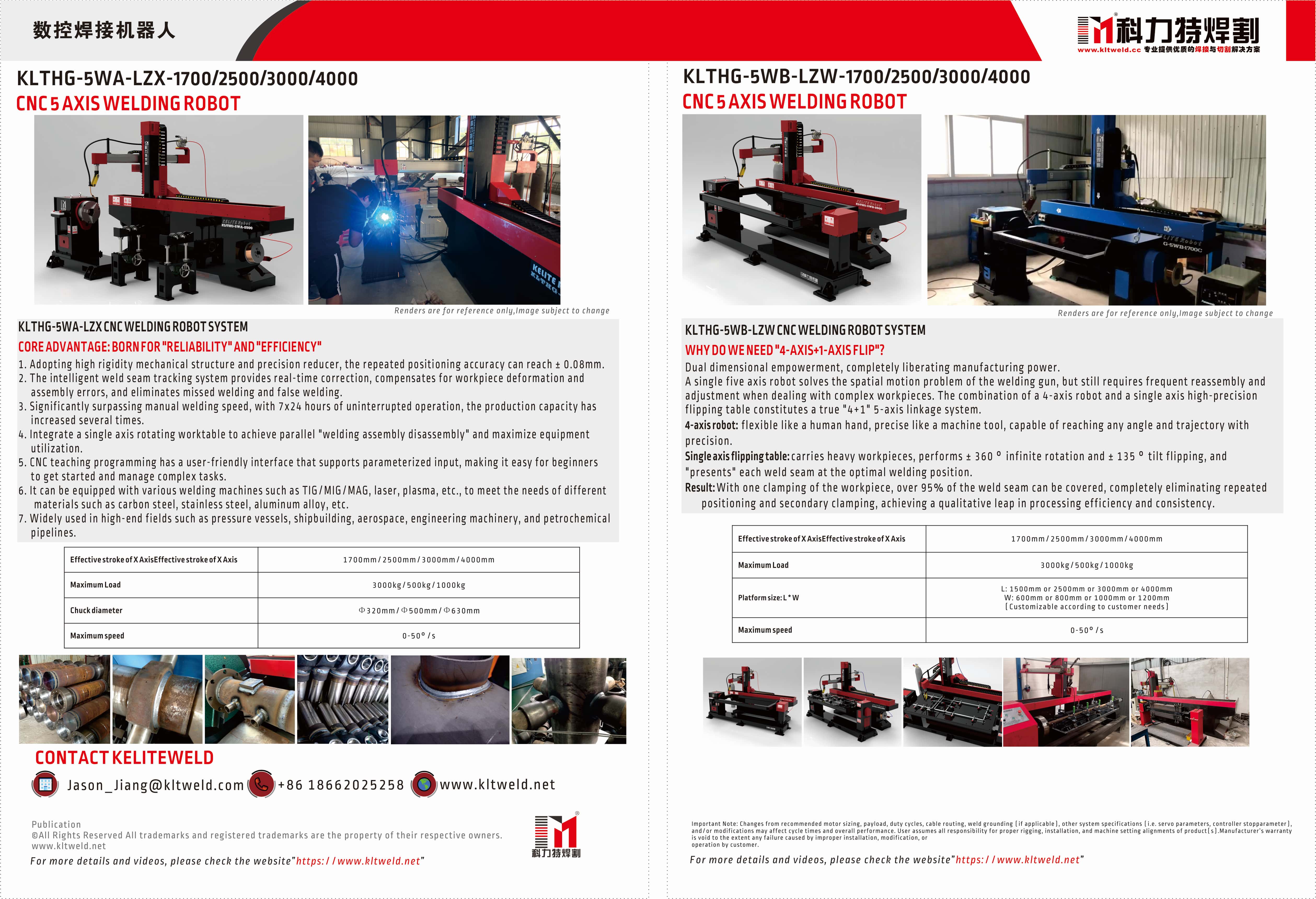

CNC 5 Axis Welding Machine KLTHG-5WB-1700/2500/3000/4000

Description

Model

Quantity

1

CNC 5 Axis

Welding Robot

AC 220 V ,50/60HZ

X axis travel: 1700/2500/3000/4000 mm,

(Customizable according to customer

needs)

Y axis travel:800/1000/1200 mm

Z axis travel: 500mm,

C axis travel: 0-400 degrees

Absolute encoder servo motor

(Chinese brand)

CNC 5-axis Linkage touch   screen controller

TBI wire rod and guide rail

1set

External axis servo

motor

Add 5 Axis Positioner (5WB);

Absolute servo motor

1 set

Robot extension

cable

Robot extension cable (8m);

And extension of

external axis servo motor cable

1 set

2

Welding Power

Supply

YD500GL5

(CO2/Pulse MAG/ Pulse MIG)

（Panasonic）

AC 3*380V ,50/60 HZ，Load   rate 60%

Main welding materials: carbon steel,

stainless steel, Cable 5m

1set

3

Servo head   and tail

positioner

Load≤500kg, Linked with the robot,

Platform size: L * W

L: Effective length 1500/2500/3000/4000

mm

W: Effective length 600/800/1000/1200   mm

(Customizable   according to customer

needs)

1 set

4

Welding torch

500A, water-cooled welding torch

1set

5

Cooling water tank

Model: WL-20L

1 set

6

Conductive tip

Φ=1.0mm/Φ=1.2mm,1 row = 10 pieces

10 rows

7

Welding torch cover

500A Water -cooled welding   torch,

1 row = 5 pieces

10 rows

Main Technical Parameters

Model

KLTHG-5WB-1700

KLTHG-5WB-2500

KLTHG-5WB-3000

KLTHG-5WB-4000

Effective stroke of X Axis

1700mm

2500mm

3000mm

4000mm

X-Axis Transmission

Precision helical gear rack

Y-Axis Transmission

Precision ball screw - Effective stroke 800mm

Z-Axis Transmission

Precision helical gear rack - Effective stroke 450mm

Effective stroke of C axis

0-400degree

Maximum operating

speed

700mm/S or 42m/min

Repeatability

positioning accuracy

±0.1mm

Servo head and tail positioner KLTLZW-B

Maximum Load

300kg or 500kg or 1000kg

Platform size: L * W

L: 1500mm or 2500mm or 3000mm or 4000mm

W: 600mm or 800mm or   1000mm or 1200mm

(Customizable   according to customer needs)

Platform Height

Distance from Platform to Ground

Customizable according to customer needs

Maximum speed

50°/s

Accuracy

±3 (arcmin)

Programming form

Teach mode and manual mode

X、Y、Z、C、U Axis

motor

Absolute AC servo motor

Drive parts

Taiwan TBI

Control system

CNC 5 Axis Linkage

Input/output

24 Inputs, 12 Outputs

Program storage

Memory 1GB

Main input power

AC 220V 50HZ/60HZ

Welding method

CO2/MAG/MIG/TIG/SAW/Plasma/PTA/Laser Welding

Gas protection

100%CO2 or   80%Ar+20%CO2 or100%Ar
