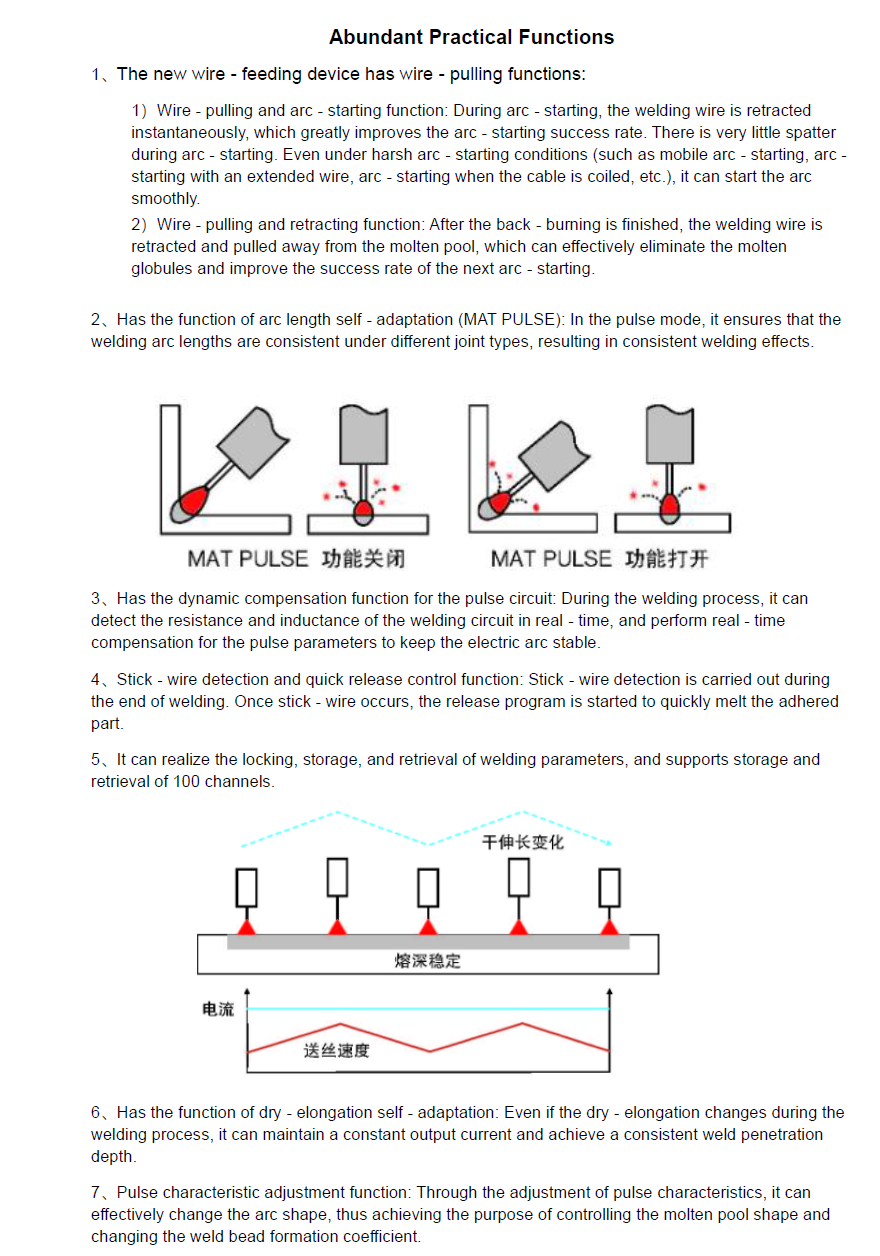

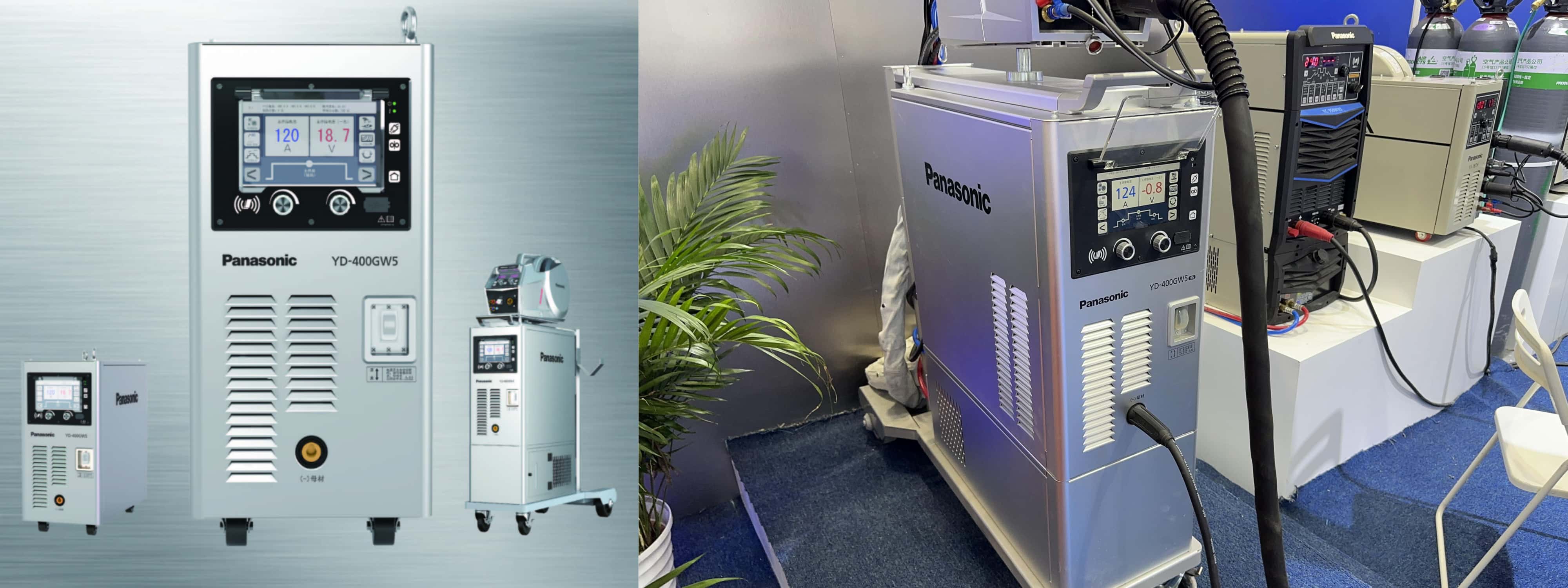

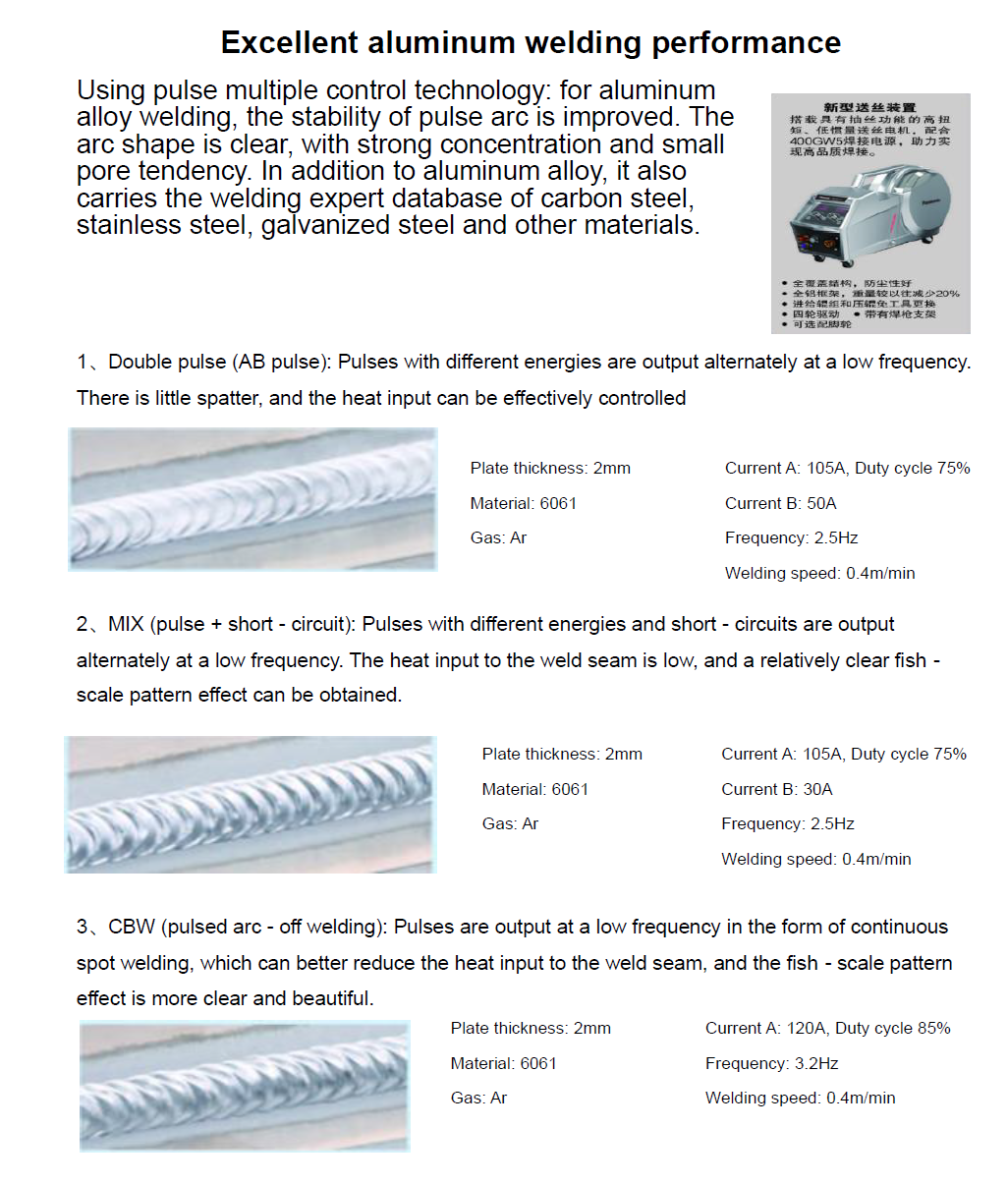

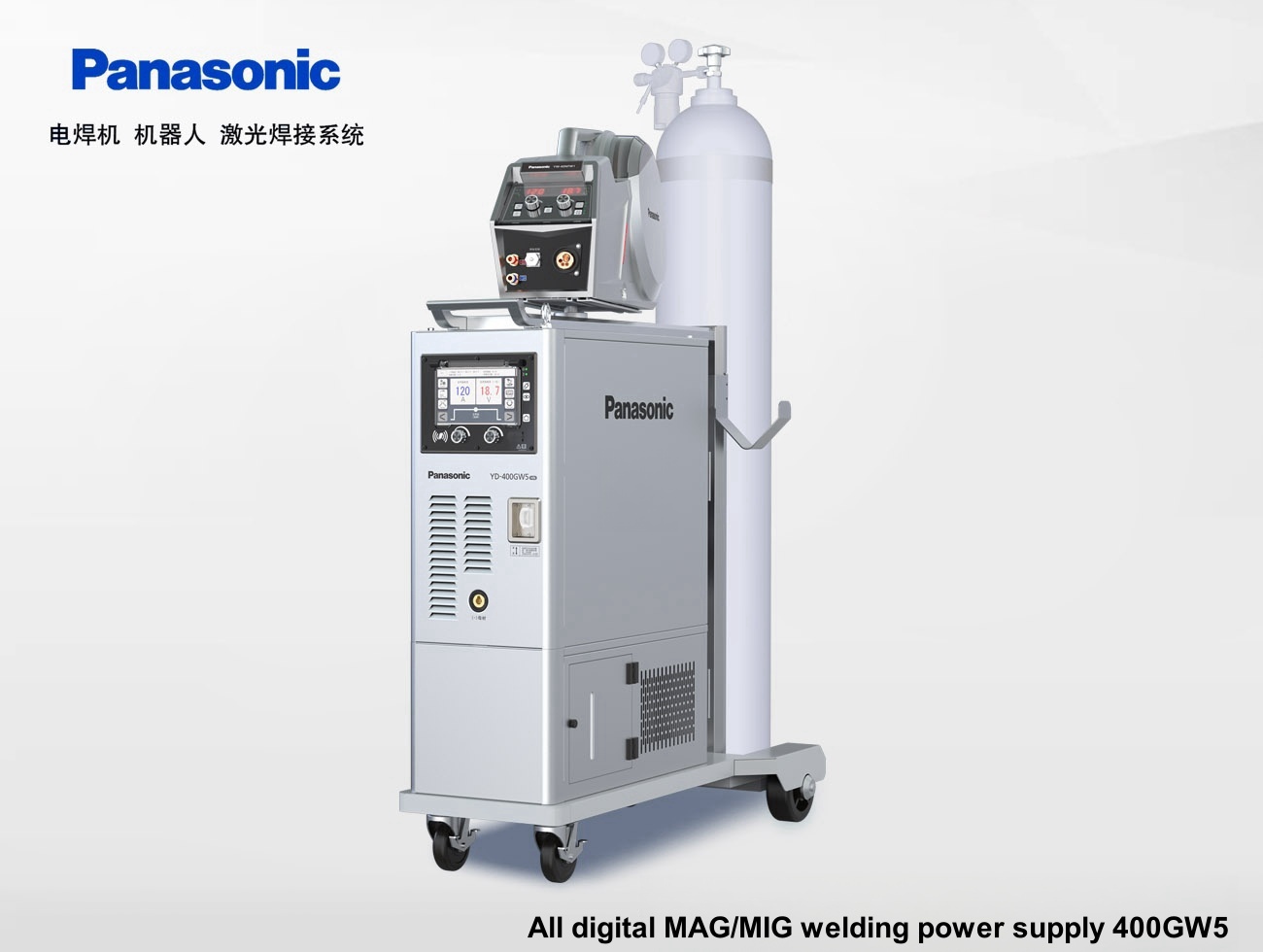

Panasonic welding power supply YD-400GW5-Steel/Aluminium

Description

Model

Quantity

1

Welding Power Supply

YD-400GW5HNW (MIG/MAG)（Panasonic）

AC 3*380V,50/60HZ; Load rate 40%;

Closed water-cooled wire feeder

Main welding materials:   carbon steel, stainless steel，Aluminium or Aluminium alloy

1set

2

Wire feeding device

YW-40NFW1HWE

Wire feeder cable assembly:70mm²(WTMXW00036_2000)

1set

3

Argon   flow meter

YX-25AJ1HAE

For CO2/ MAG/MIG;

1set

4

welding   torch

YT-40MNW1HMW

1set

5

Base material cable

WTDWC00096(AGAB00301000)

1set

6

Coolant

WTXXW00009

1set

7

Conductive tip

According to customer selection:

Φ=1.0mm or Φ=1.2mmor Φ=1.6mm

100 pieces

8

Welding torch cover

welding torch;

50 pieces

9

Wooden box fee

Made of wooden boxes, fumigated for export

1set

Description

Model

Quantity

1

Welding Power Supply

YD-400GW5HGE (MIG/MAG)（Panasonic）

AC 3*380V,50/60HZ; Load rate 40%;

Main welding materials: carbon steel, stainless steel；

1set

2

Wire feeding device

YW-40NF1HWE

Wire feeder cable assembly:70mm²(WTMXW00079_2000)

1set

3

Argon flow meter

YX-25CD1HAM

For CO2/ MAG/MIG;

1set

4

welding torch

YT-35CS4HAE

1set

5

Base material cable

WTDWC00096(AGAB00301000)

1set

6

Conductive tip

According to customer selection:

Φ=1.0mm or Φ=1.2mmor Φ=1.6mm

100 pieces

7

Welding torch cover

350A Air-cooled welding torch;

50 pieces

8

Wooden box fee

Made of wooden boxes, fumigated for export

1set

Project

Unit

Parameter

YD-400GW5HNW

YD-400GW5HGE

Rated   input power supply

-

Three-phase   Ac380v

Input power frequency

HZ

50/60

Rated input capacity

KVA/KW

19.8/15.9

Rated output no-load voltages

V

DC70

Rated output current

A

DC400

Rated output voltage

V

34

Rated load duration

%

40

Output current range (※)

A

DC   40~400

Output voltage range (※)

V

16~34

Control method

-

MOSFET   inverter mode

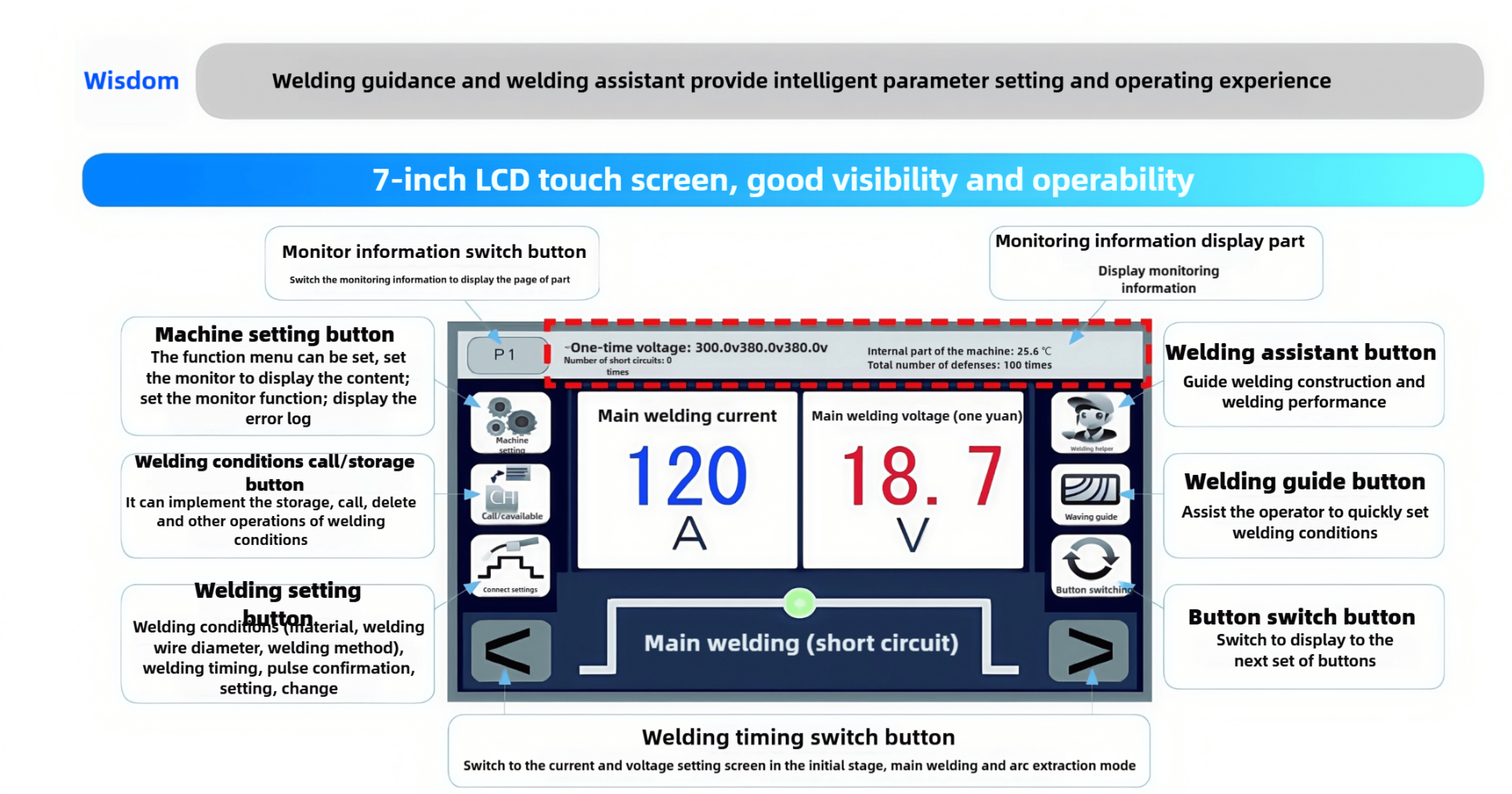

Memory

-

100   channels storage · calling

Welding method

-

C0₂/MAG/MIG/Pulse MAG/Pulse MIG

Waveform control function

-

Digital setting

-99 (weak) ~ 0 (standard) ~ 99 (strong)

Directive sequence function

-

Welding/Welding   arc extinguishing/Initial welding arc extinguishing/Spot welding

Protect gas

-

C0₂ welding CO₂: 100%

MAG   welding Ar: 80%,C0_2:20%

stainless steel MIG welding Ar: 97.5%, C0₂:   2.5%

aluminum MIG welding Ar: 100%

Suitable for welding wire diameter

mm

Steel: 0.8~1.4 aluminum: 1.2~1.6

Welding wire material

-

Carbon   steel/Carbon steel core/Stainless steel/Stainless steel core/Hard   aluminum/Soft aluminum

Inflation   time in advance

s

0   ~10 continuous adjustment (0.1 s increments)

After stagnation and stop time

s

0   ~10 continuous adjustment (0.1 s increments)

Spot welding time

s

0.3~10.0   continuous adjustment (0.1 s increments)

Capacity of liquid cooling system

L

6

-

Cooling method of liquid cooling system

-

Forced   circulation cooling of water pump

-

Cooling capacity of liquid cooling   system

KM

1.3   (tested at a flow rate of 1L/min)

-

Coolant flow rate

L/min

>1   (Used in conjunction with Panasonic products)

-

Maximum head of coolant

m

20

-

Output terminal

-

Quick   socket

Protection level

-

IP23S

Insulation level

-

155   ℃ (electric   reactor120 ℃）

Cooling method

-

Forced   air cooling

Dimensions

(length x width x height)

mm

1100   × 485 × 1160 (including power supply, liquid cooling system, and gas cylinder   trolley)

710X307X680

Weight

kg

99   (including power supply, liquid cooling system, and gas cylinder trolley)

55

Serial number

Unit

YW-40NFW1HWE

YW-50NFW1HWE

Rated welding   current

A

500

500

Connection welding

-

Water cooled welding gun

Air cooled

welding gun

Connection welding   method

-

European style connector

Welding silk

Diameter

mm

Φ1.2，Φ1.6

Φ0.8-Φ1.6

Material

-

Aluminium

Carbon steel

Shielding gas

-

Ar

CO_2, CO₂+ AR

Weight

Kg

13.3

Rated wire feeding   speed

m/min

1.4-20

Rated Duty Cycle

%

60

Extended cable assembly

(Customized length)

-

WTMWU00074

WTMWU00079

Serial number

YT-40MFW3HTE

YT-35CS4HA2

Rated welding   current

400A

350A

Rated Duty Cycle

MIG

310A-100%

400A-60%

-

MAG

358A-100%

400A-80%

200A-100%

350A-35%

CO₂

400A-100%

270A-100%

350-60%

Welding gun   connection method

European style connector

Applicable wire   diameter

Φ1.2mm-Φ1.6mm

Φ0.8-1.4mm

wlding silk

Aluminum, Crbon steel, Sainless steel

Cbon steel,Sainless steel

Cable Length

3m

Integrated type

YM-400GW5HNW

Welding power source

（Including   water tank and small car）

YD-400GW5HNW

Wire feeding device

YW-40NFW1HWE

Cable Assembly

WTMWU00074(2.0)

Welding torch

YT-40MFW3HNT

Argon flowmeter

YX-25AJ1HNE

Wire（C-type ground wire clamp）

TSMYU751(3.0)

Water tank coolant

WTXXW00009

explain

Interface card model

Interface type

RS485

WTDEU00101ZZ

D-sub

EtherNet/IP

WTDEU00097ZZ

RJ45

DeviceNet

WTDEU00098ZZ

Five pin plug

Profinet

WTDEU00099ZZ

RJ45

CanOpen

WTDEU00101ZZ

D-sub
